T1550D Sparkle Oita Team Edition Carbon Frameset

T1550D Sparkle Oita Team Edition Carbon Frameset

In Stock - Immediate dispatch in NZ Special Order

NZD$3,490.00 Incl GST

Our most beautiful creation yet; a Japan and NZ exclusive in extremely limited quantities, we present the "Break Your Limit" custom colourway T1550 disc brake frameset ridden by the very handsome Sparkle Oita team.

AVAILABLE in DISC BRAKE version only.

T-Tail
Wide-Clearing Fork
Asymmetric Chainstays
ACR Headset
T800 Carbon Fiber EPS+LATEX Molding Process
Aggressive Geometry
Flexible Handling Performance
UCI Certified

SKU: Category: Frames Tag: T1550

DESCRIPTION

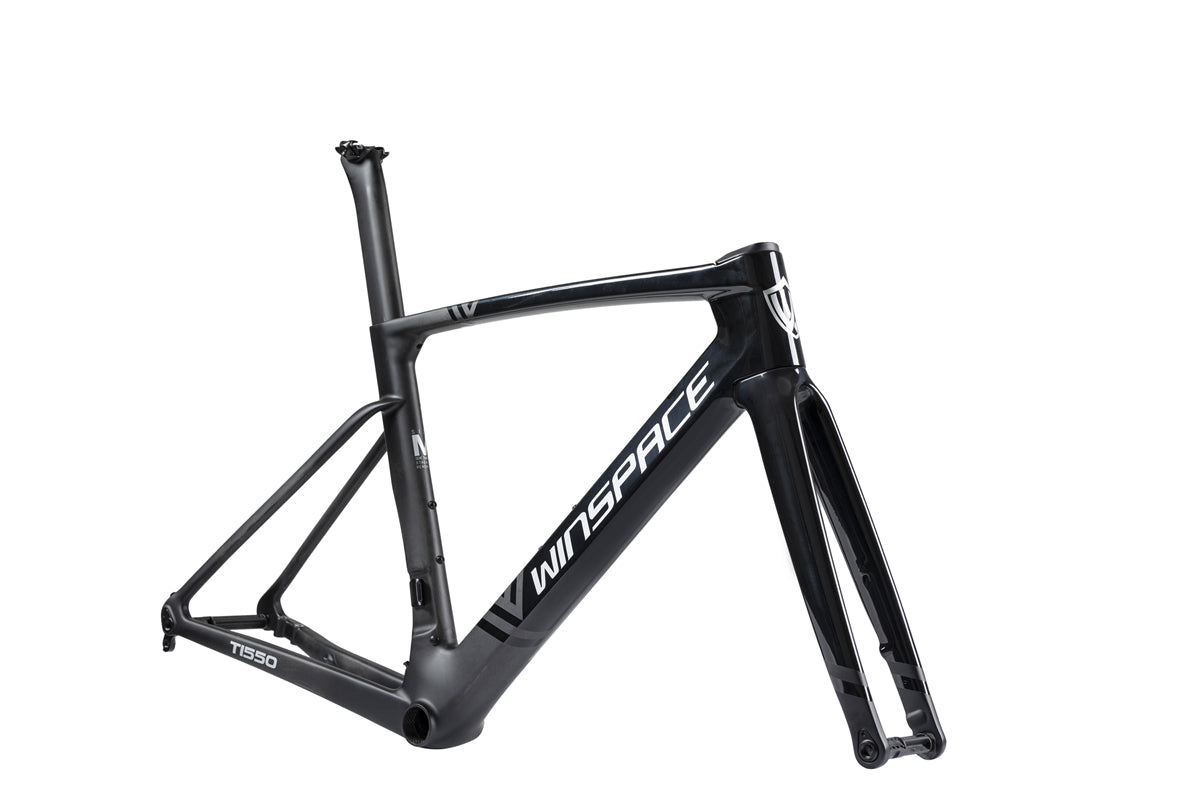

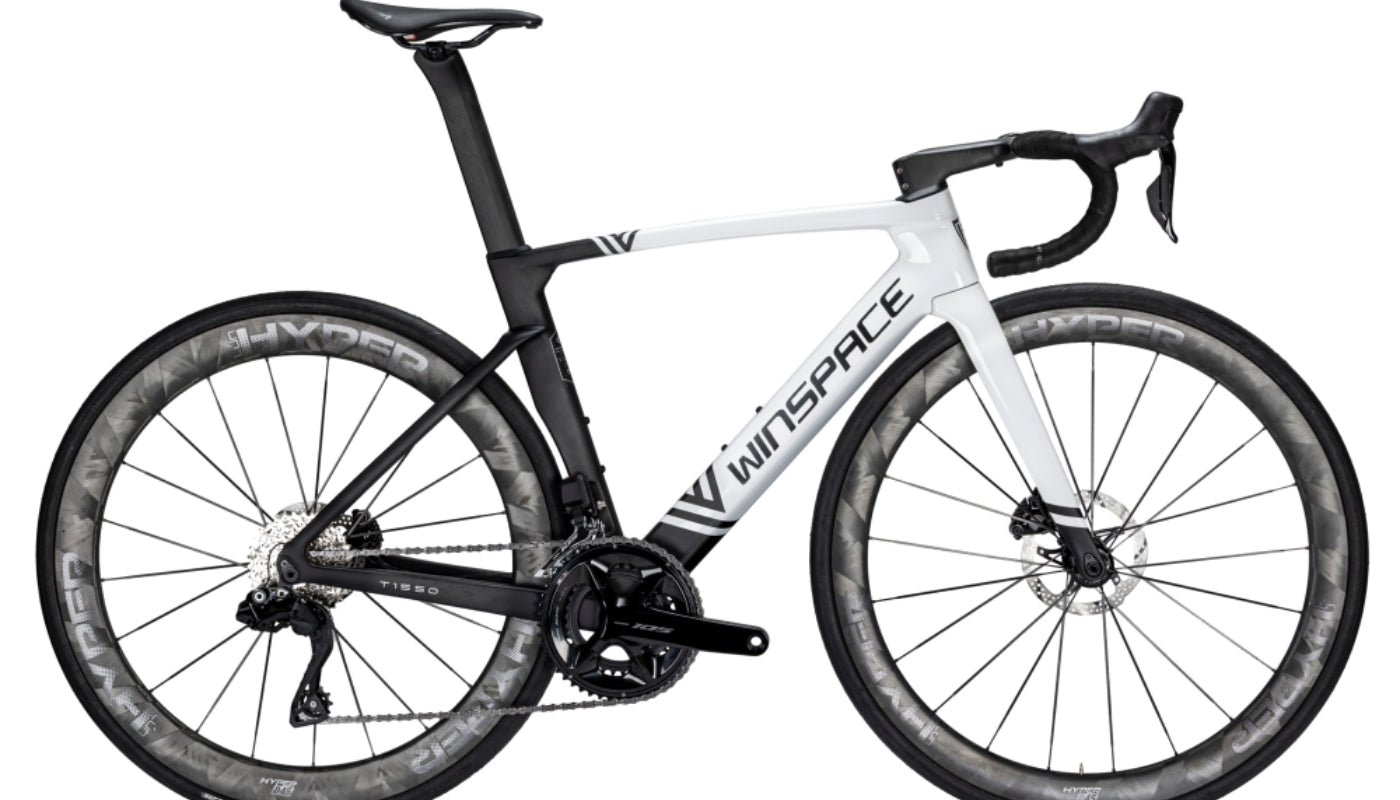

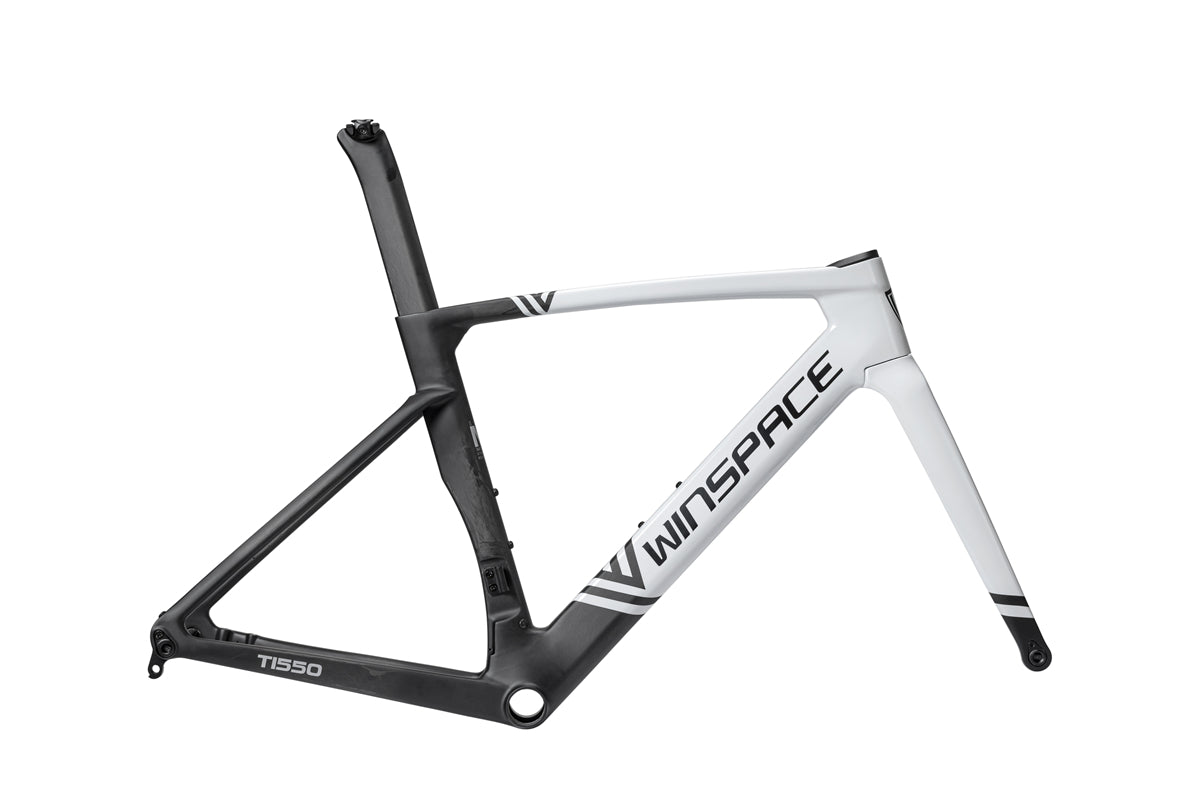

Born to race. The T1550 marks Winspace's 15th anniversary as a manufacturer and is an unapologetic race bike with aggressive geometry and an emphasis on performance. Featuring Italian design merged with our carbon fiber know-how. Available in Rim or Disc Brake options and compatible with mechanical or electronic groupsets the T1550 is a bike builder’s dream. Fully UCI Certified and ready to race in the highest levels of competition.

Specifications

Model name: T1550

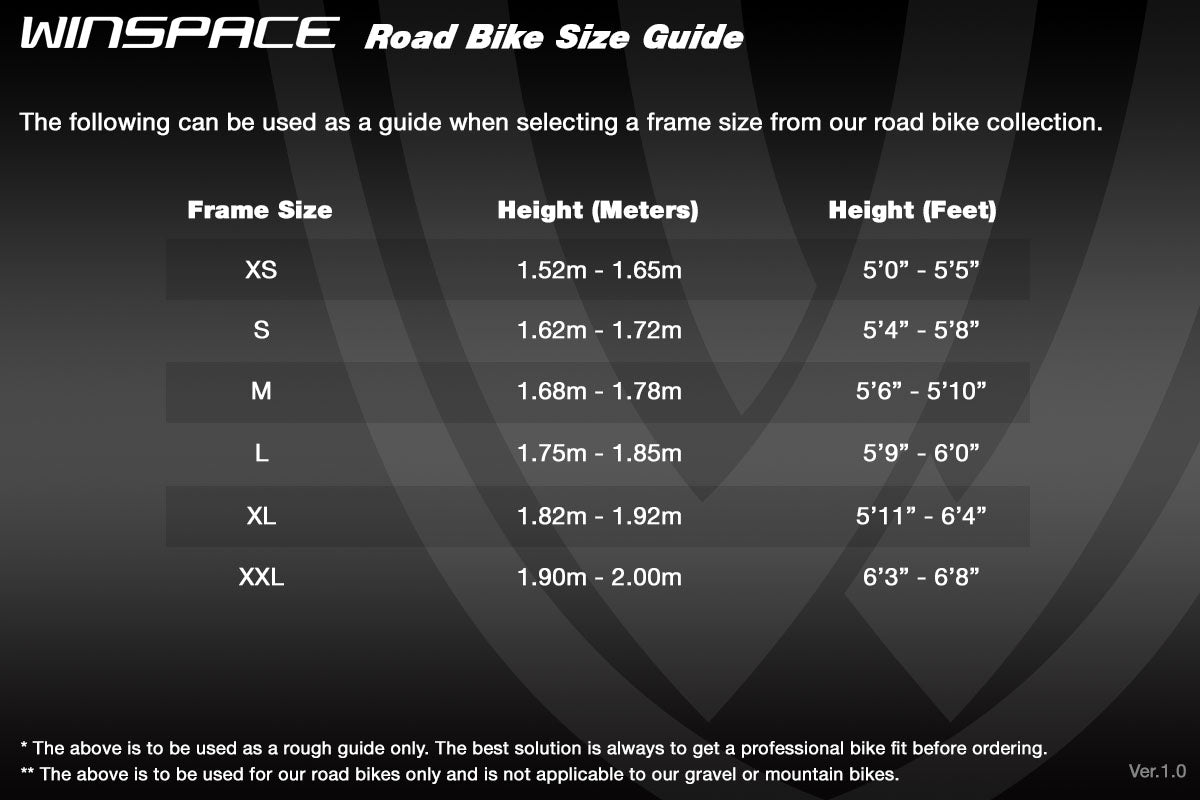

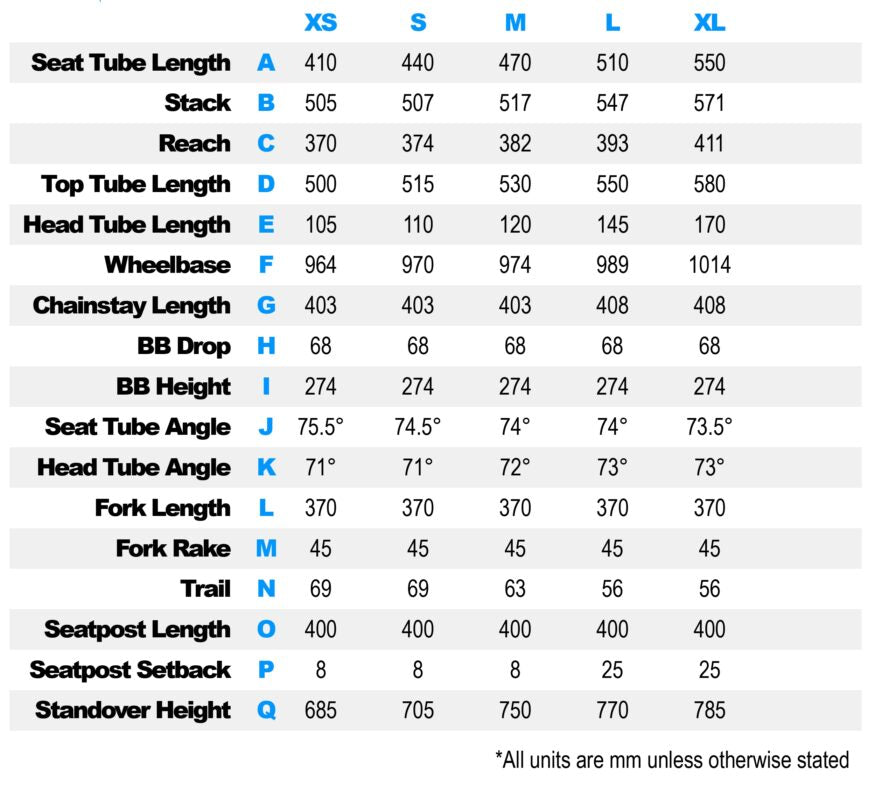

Sizes: Please refer to geometry charts below for sizing
Headtube: NO.55R 1.5″/ACR/STD (headset included.)
BB: BB86
Seatpost: Proprietary Aero Seat Post (Included.)
Brake: direct mount rim brake / flat mount disc brake
Front derailleur: Brazed on
Derailleur Routing: Mechanical / Di2 /Campy EPS / SRAM eTAP
Tire clearance: Max. 700C*32C
Wheel Axle: Rim Brake: 9mm QR F100mm R130mm / Disc Brake: 12mm through axle F100mm R142mm
Carbon fiber: Toray T800
Weight: frame 880+/-35g for M size (Unpainted)
UCI approved
Contents: Frame, Fork, Seatpost, Headset, Di2 cable stoppers, Spare Derailleur Hanger
Warranty: Limited 3yr warranty on the frameset

Features

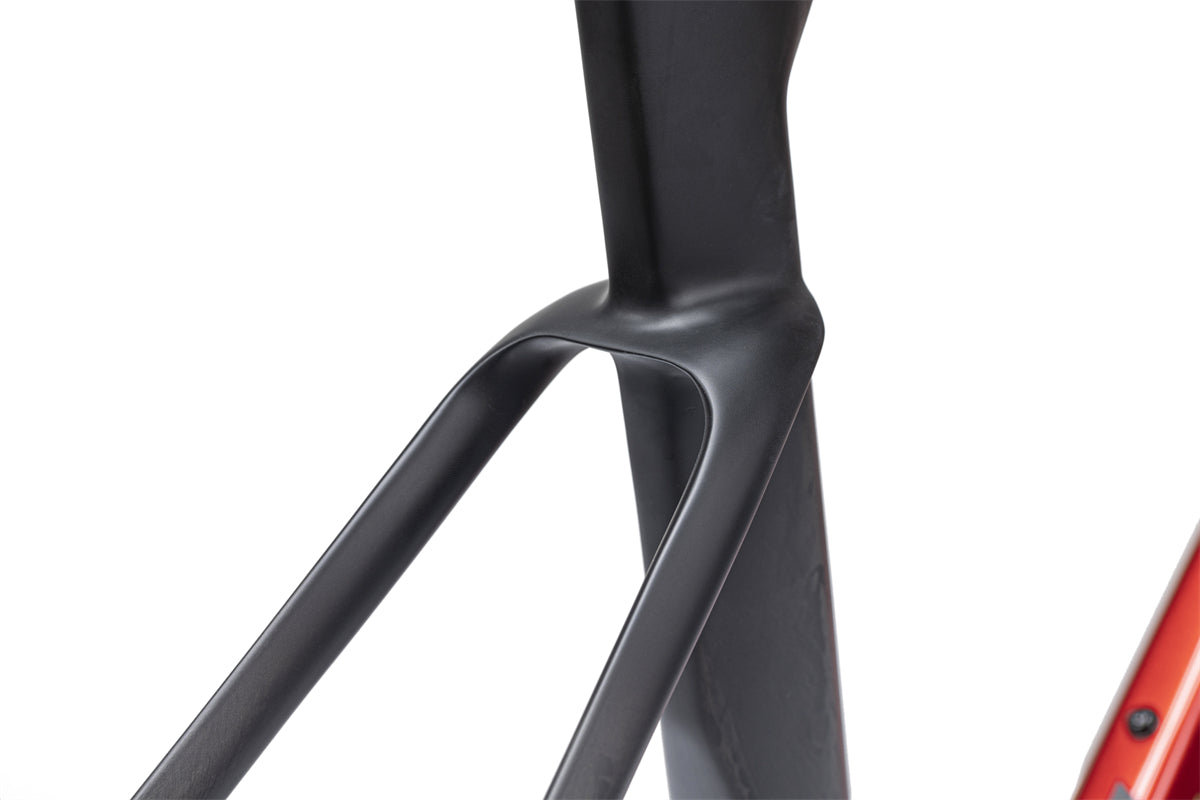

T-Tail

The Winspace T-Tail design ensures rear-triangle rigidity. The flat section intersecting the seat-tube also serves to separate airflow around the rear wheel, greatly reducing drag.

Wide-Clearing Fork

The prolongs of the fork bow-out to keep maximum clearance from the spinning spokes of the wheel in order to maintain clean airflow over the fork.

Asymmetric Chainstays

Asymmetric Chainstays are designed to counter the asymmetric loads placed on the frame by the bike’s drivetrain.

ACR Headset

The Winspace T1550 frameset comes with an ACR headset that features a fully hidden internal cable routing design. This design not only enhances the bike’s appearance but also protects the cables from damage, ensuring that they function properly for years to come. Additionally, the internal cable routing design reduces air resistance, further enhancing the bike’s aerodynamic performance.

T800 Carbon Fiber EPS+LATEX Molding Process

The Winspace T1550 frameset features a T800 carbon fiber EPS+LATEX molding process, which ensures higher-quality stability and lightweight construction. This process also ensures that the bike meets rigidity demands, making it durable and long-lasting. The use of carbon fiber also contributes to the bike’s superior aerodynamic performance, allowing you to ride faster and more efficiently.

Aggressive Geometry

The Winspace T1550 frameset has an aggressive geometry that has been designed to reduce air resistance, allowing you to ride faster and more efficiently. The frame’s shape has been optimized to provide superior aerodynamic performance, making it the perfect option for road cyclists who demand the best.

Flexible Handling Performance

The Winspace T1550 frameset has been designed to provide flexible handling performance, allowing you to maintain optimal control over the bike at all times. The frame’s geometry and fork design work together to provide excellent handling, making it easy to navigate even the most challenging terrain.
